SANKEN GLASS

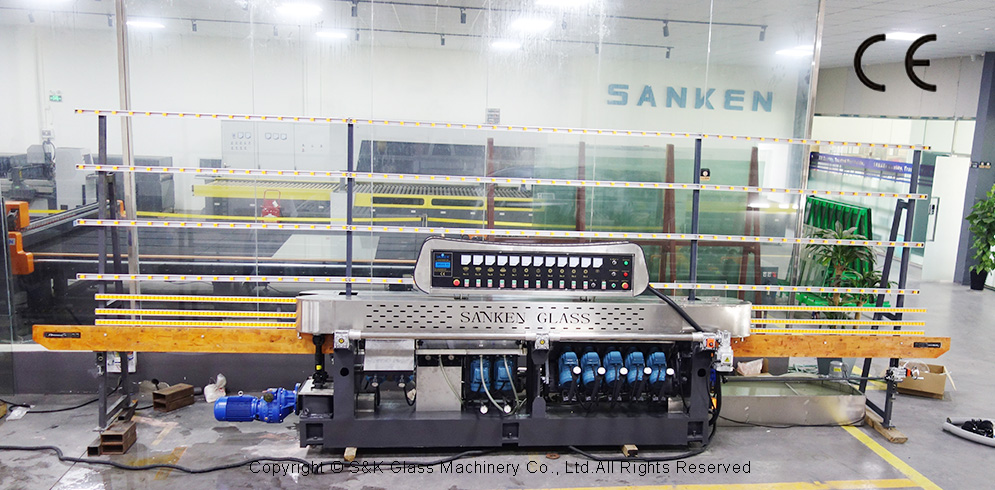

SK45-11 glass mitering machine manufactory
FEATURE
SANKEN glass mitering machine, is positioned at the highest end of the glass deep-processing industry, we manufactured this type of glass mitering machine with the most advanced technology and made by the best materials. SANKEN glass mitering machine has the advantages of perfect glass polishing effect, with high stability, extremely low failure rate, and very much convenient maintenance.   The main parts of the glass mitering machine are combined with glass loading section, glass grinding section and glass unloading section. It can be used to process glass straight line and 45 degrees line. The protective cover and structure framework are installed with stainless steel or other special treatment steel.  Controlled by PLC touch screen, which is easy to operate.  And SANKEN's glass mitering machine a frequency speed control system, for different size and thickness glass has best grinding and polishing effect, 3-19mm. For example, the glass can supply lubricating oil and clean the glass pressure plate inside the equipment to ensure that the moving part of the glass is clean and tidy, and there is no glass slag, so as to ensure that the glass will not be chipped and damaged. It will be very helpful for the maintenance of customers in the future.
MAIN SPECIFICATION
1. Min glass size: 100 * 100 mm 2. Max glass size: 1800 * 2440 mm 3. Thickness: 3-19 mm 4. Total power: 26 KW 5. Water: Self-circulation,Tap water(civilian standards) 6. Voltage: 380V /50Hz, (PLC – INOVANCE, TOUCH SCREEN- MCGS) 7. Machine size: 7500 * 1200 * 2500 mm 8. Weight: 3400 kg 9. HS CODE: 8464201000
ADVANTAGE
(1) SANKEN'S glass mitering machine is easy operated, with PLC and touch screen. (2) glass mitering machine delivery speed can be adjusted,0.7-3.5m/min, 0-45 degrees. (3) The glass mitering machine adopts high-quality forged steel to make the main frame, which is stable, corrosion-resistant and durable. (4) The glass mitering machine adopts SANKEN customized motor, stable performance, low noise, low failure and long service life (5) Good glass polishing effect, high gloss of glass, indicating smoothness.. (6) SANKEN'S glass mitering machine was designed with overseas newest advanced technology, and manufactured it based on Chinese glass processing technique. SANKEN's glass mitering machine has the good airtightness, so that it is no water leak. (7) The drainage part of the glass mitering machine adopts high-quality large-diameter stainless steel pipes, and the drainage is smooth and not blocked, ensuring the processing effect of the glass and the cleanliness. (8) The glass mitering machine uses a belt made of high-quality materials for glass transmission, and the glass is conveyed smoothly, which further protects the glass from scratches and other damage. (9) The electronic control part of the glass mitering machine adopts French Schneider electronic products, the circuit runs stably and safely. (10) SANKEN glass mitering machine has the advantages of perfect polishing effect, with high stability, extremely low failure rate, and very much convenient maintenance.
VENUE OF APPLICATION
SANKEN glass mitering machine is specially designed for glass deep-processing, such as Glass Drilling, Glass Tempering Production Line, Laminating Line, IG Insulation Line, Silk-Screen Printing Line, etc.
